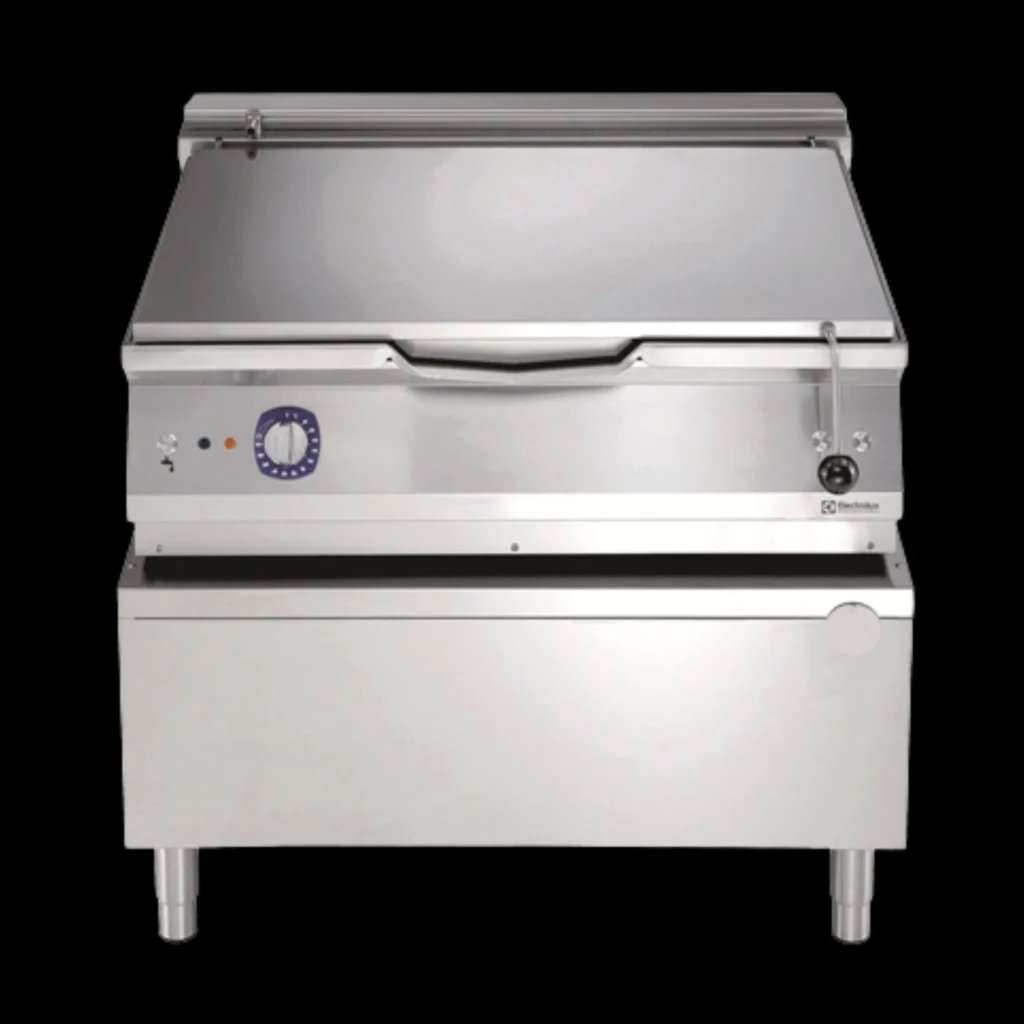

Electrolux Professional E9BREJDPFM Electric Braising Pan
Model
E9BREJDPFM
Category
Electric Braising Pans
Brand
Electrolux
The Electrolux Professional E9BREJDPFM is a 100-liter electric tilting braising pan built for high-volume cooking. It features a durable Duomat surface, precise thermostatic control, and automatic tilting for easy operation. Ideal for restaurants, hotels, and catering kitchens. Bratt pan is ideal for sautéing, poaching, steaming, boiling, stewing, and damp cooking. Cooking surface with Duomat bottom: a 10 mm-thick alloy obtained from the combination of 2 different stainless steels for better thermal stability and corrosion resistance. Heat-insulated: limited heat radiation and low energy consumption. Working temperature can be set from 80°C to 300 °С. Download the datasheet for more information.
Use this page to prepare the model number, serial number, part number if available, and photos before submitting a parts request.
Key features
Automatic tilting
Durable Duomat surface
Precise thermostatic control
Designed for hotels, restaurants, and catering kitchens
Compatibility note:
Confirm the exact model and serial number from the equipment data plate before ordering. Brand names are used for identification only.
Specifications
Specifications for Electrolux Professional E9BREJDPFM Electric Braising Pan
The Electrolux EM Series ACFG24TW is a 24-inch gas range with four open burners and a static oven. Ideal for restaurants, cafés, and commercial kitchens, it features easy-to-clean parts, a full-width crumb tray, and even heat distribution for consistent results. Four individually controlled high-efficiency 9.5 kW Flower Flame gas burners. The interior is 497 mm w x 680 mm d x 380 mm h. 610 mm static oven 10 kW with a unique baffle above the burner distributes heat to provide even cooking temperatures throughout the cavity. Included Accessories: propane converter kit, pressure regulator, and main shut-off valve. 100% safety pilot. In compliance with ETL Certification (UL & NSF). Download the datasheet for more information.
The Electrolux EM Series ACFG36TW is a 36-inch gas range with four open burners and a static oven. Ideal for restaurants, cafés, and commercial kitchens, it features easy-to-clean parts, a full-width crumb tray, and even heat distribution for consistent results. Six individually controlled high-efficiency 9.5 kW Flower Flame gas burners. The interior is 497 mm w x 680 mm d x 380 mm h. 24″ (610 mm) static oven 34,000 BTU/hr (10 kW) with a unique baffle above the burner distributes heat to provide even cooking temperatures throughout the cavity. Included Accessories: propane converter kit, pressure regulator, and main shut-off valve. Heavy-duty thermostat with a temperature range from 70 °C to 310 °С. No gaskets and removable one-piece venturis and burners for easy cleaning. 100% safety pilot. Download the datasheet for more information.
The Electrolux Professional E0UUBEBOMOA is a 760mm electric salamander grill with front-open design and adjustable grid—perfect for fast grilling, toasting, melting, or finishing dishes. Built for heavy-duty use in restaurants, hotels, and food service kitchens. 2 independent cooking zones managed by 2 knobs. Unit to be heated via Incoloy armoured heating elements. Cooking plate size: 575×400 mm, accepts GN1/1. The height of the grid can be adjusted on 6 different levels through the rack system. Heat control with an energy regulator. Front open, side, and back panels can be removed. Entirely constructed in 430 AISI stainless steel. Removable stainless steel drip tray. Chromium-plated steel grid with a safety stop to avoid accidental falls. The tabletop unit can be wall-mounted with a dedicated optional accessory.
The Electrolux Professional E9BSEHIPF0 is a 100-liter electric cylindrical boiling pan with a pressure switch and indirect heating. It delivers efficient, even heat for boiling, steaming, and simmering large batches, with easy-to-use controls and simple cleaning for busy commercial kitchens. Round kettle is suitable for cooking, sautéing, or poaching all kinds of produce. No overshooting of cooking temperatures, fast reaction. Ergonomic: The depth of the vessel facilitates stirring the food, even the most delicate food. Discharge tube and tap are very easy to clean from the outside. Pressed cooking vessel and double jacket in 316 AISI Stainless steel. Closed heating system – no waste of energy. Pressure switch control monitors energy and water consumption. Download the datasheet for more information.
Heating elements
Control components
Gaskets and seals
Valves and taps
View details
Recently viewed
Parts for this model
Need parts for E9BREJDPFM?
Send the serial number, part number if available, and a photo of the data plate or damaged part — we will confirm availability and next steps.
